Attributes

Attributes represent the properties which Active Directory objects have. Similarly to classes, they are represented by attributeSchema objects in the schema of the Active Directory environment. The properties of this object describe the characteristics of the attribute.

Modifying attribute definitions is done through the [Microsoft Management Console](index.md).

Syntax

The syntax of an attribute specifies the kind of information that it can hold and is similar to data types in programming languages. There are 23 possible syntaxes which are specified by the combination of the attributeSyntax and oMSyntax properties of the attribute.

Syntax	`attributeSyntax`	`oMSyntax`	Description
Boolean	2.5.5.8	1	A boolean value - either true or false.
String(Case Sensitive)	2.5.5.3	27	A case-sensitive ASCII string.
Integer	2.5.5.9	2	A 32-bit signed integer.
LargeInteger	2.5.5.16	65	A 64-bit signed integer.
Object(DS-DN)	2.5.5.1	127	A string containing a Distinguished Name.
String(Unicode)	2.5.5.12	64	A case-insensitive Unicode string.
String(Object-Identifier)	2.5.5.2	6	An OID string, i.e. a string containing digits 0-9 and decimal dots (`.`).
String(Octet)	2.5.5.10	4	A string representing an array of bytes.
String(Printable)	2.5.5.5	19	A case-sensitive string containing characters from the printable set.
String(Generalized-Time)	2.5.5.11	24	A string for storing time values in Generalized-Time format as defined by ASN.1.
String(UTC-Time)	2.5.5.11	13	A string for storing time values in UTC-Time format as defined by ASN.1.

Most of these represent typical data types in programming languages. When unsure which syntax to use, take a look at already existing attributes to get an idea of which syntax might be appropriate.

systemFlags

Each attribute definition in the Schema has a systemFlags property which describes how the attribute should be handled. It is a 32-bit big-endian field representing various flags as single-bit switches. Most of the bits are not used and should be left as zeros.

Flag	Bit	Description
`FLAG_ATTR_NOT_REPLICATED` (NR)	31	The attribute will not be replicated.
`FLAG_ATTR_REQ_PARTIAL_SET_MEMBER` (PS)	30	The attribute is a member of a partial attribute set (PAS).
`FLAG_ATTR_IS_CONSTRUCTED` (CS)	29	The attribute is constructed. This flag should only be set by Microsoft.
`FLAG_ATTR_IS_OPERATIONAL` (OP)	28	The attribute is operational.
`FLAG_SCHEMA_BASE_OBJECT` (BS)	27	The attribute is part of the base (default) schema.
`FLAG_ATTR_IS_RDN` (RD)	26	The attribute can be used an RDN attribute.

Constructed Attributes

Certain attributes are not stored directly in the Active Directory database. The value of these constructed attributes is instead calculated whenever it is needed. This usually involves other attributes in the calculation. The functionality constructed attributes provide may range from telling you approximately how many objects are stored directly under a given container (msDS-Approx-Immed-Subordinates) to yielding information about attributes you have write access to on a given object (allowedAttributesEffective).

Due to their special implementation, constructed attributes abide by certain rules:

They are not replicated.
They cannot be used in server-side sorting.
They cannot be used for queries (with the exception of aNR).

The definition of a constructed attribute has the FLAG_ATTR_IS_CONSTRUCTED field in the systemFlags set to 1.

Indexed Attributes

Attribute indexing is the process of storing the values of all instances of the attribute in a sorted table. This is done in order to boost query performance, since any queries involving the indexed attribute can be optimised by only looking through the table responsible for the specific attribute.

Unfortunately, it is not always possible to use indexing to speed up querying:

Queries containing bitwise operations on the indexed attribute nullify the effect of indexing. These are queries which involving bit masks such as systemFlags.
Queries containing the NOT operation on a bitwise attribute cannot avail themselves of indexing because negation necessitates the enumeration of all objects to determine which ones lack the attribute.

Indexing attributes comes with a disk space trade-off. Indexing an attribute which is present in a large number of objects may result in a significant disk consumption for the index's table.

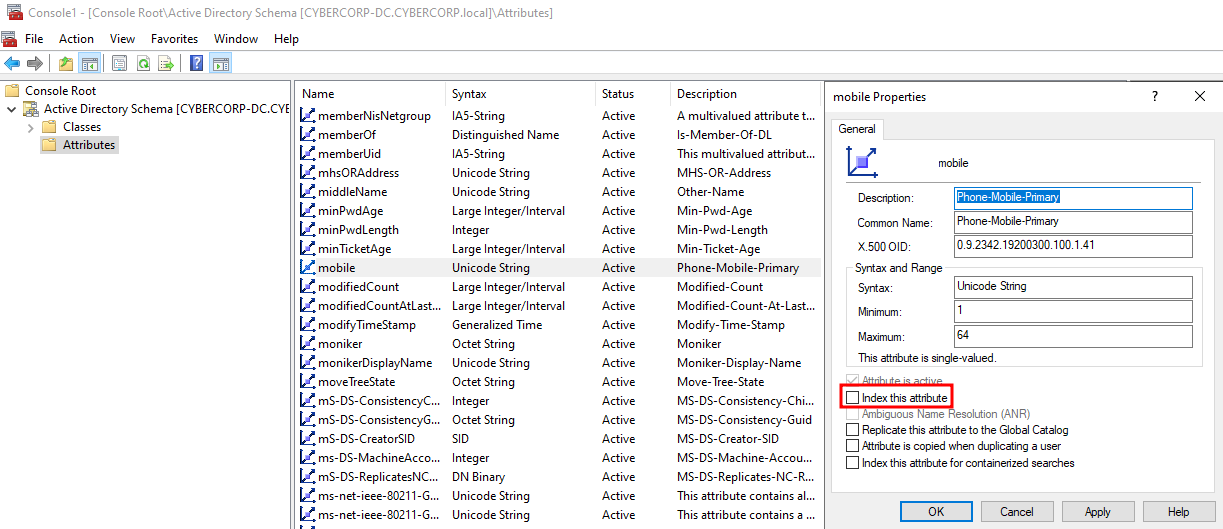

To specify that an attribute should be indexed, right-click on the attribute in the MMC and click `Properties`. In the properties, simply tick `Index this attribute`:

![](Resources/Images/Index%20Attribute.png)

Attribute indexing is reflected in the searchFlags property of the corresponding attributeSchema object:

Flag	Bit	Description
`fATTINDEX` (IX)	31	Specifies an indexed attribute. All other index-based flags require this flag to be set.
`fPDNTATTINDEX` (PI)	30	Specifies Create an index for the attribute in each container.
`fTUPLEINDEX` (TP)	26	Specifies that a tuple index for medial searches (ones which contain wildcards not at the end of the value) should be created.
`fSUBTREEATTINDEX`(ST)	25	Specifies that subtree index for Virtual List View (VLV) searches should be created.

Linked Attributes

Attributes with an attributeSyntax of 2.5.5.1, 2.5.5.7, or 2.5.5.14 can be linked to attributes with an attributeSyntax of 2.5.5.1. Linked attributes come in pairs - one is called the forward link and the other is called the back link. Linking simply means that the value of the back link is calculated based on the value of the forward link.

A pair of linked attributes is identified by the linkID properties of the two attributeSchema objects representing the attribute definitions. The linkID of the forward link must be a unique even number and the linkID of its corresponding back link must be the forward link's linkID plus one.
